32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine

CANGZHOU BOHAI BRICK MACHINERY CO.,LTD
Contact Now

32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine

  • 1
  • 2
  • 3

Brand Name : CB

Model Number : JKY-60

Certification : ISO-9001 CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, T/T

Supply Ability : 5000SETS

Delivery Time : 20-45 Days

Packaging Details : wooden box and container

Production Name : Brick Making Machine

Reamer Diamete : 600mm

Production capacity(t/h) : 18000-32000

Moisture Content : 13-18 %

Brand : cangbo

weight : 28000

Overall dimension : 7150×2200×3100

Pressure : 4.0

Colour : red

Vacuum degree : -0.092

Power : 250+90

Condition : New

Automatic : Yes

Contact Now

32000t/H JKY60 600mm Red automatic hydraulic fly ash brick making machine

1.product description

Two-stage vacuum extruder is a new type brick-making equipment, designed and manufactured by our company, benefiting from advanced technology both at home and abroad.


It is of whole steel structure with main parts cast of high-abrasion alloy by high frequency heat treatment technology. Fearturing reasonable structure, heavy-duty, energy saving, high efficiency and easy maintenance, it is more suitalbe for manufacturing cell bricks and solid bricks with shale, coal gangue and fly ash.

2. Product features:

1. The automatic red clay brick machine is used to produce large holes, large cross-section solid bricks and hollow bricks with various hole sizes, and is suitable for a variety of materials.

2.Automatic Brick Making Machine has the characteristics of novel structure, advanced technology, high extrusion pressure, high output and high vacuum. Controlled by pneumatic clutch, it is sensitive, convenient and reliable.

3. After being extruded from the lower auger into the fuel tank, the soil and other raw materials are cleaned by vacuum. When the machine model is different, various specifications of porous bricks can be produced.

3 . Techical parameter

Date Units of meas JKY60-4.0
Production capacity Pieces/h 18000-32000
Reamer diameter mm 600
Pressure Mpa 4.0
Moisture content % 13~18
Vacuum degree Mpa ≤-0.092
Power kw 250+90
Size mm 7150×2200×3100
Weight kg 28000

4.Product Advantage

1. This series of host adopts high-quality steel plate welding structure, and the main components are quenched and tempered, which is compact and practical, stable in work, and low energy consumption

2. Red Automatic Brick Making Machine is suitable for power vacuum in small factories or entering restricted areas of main product machines.

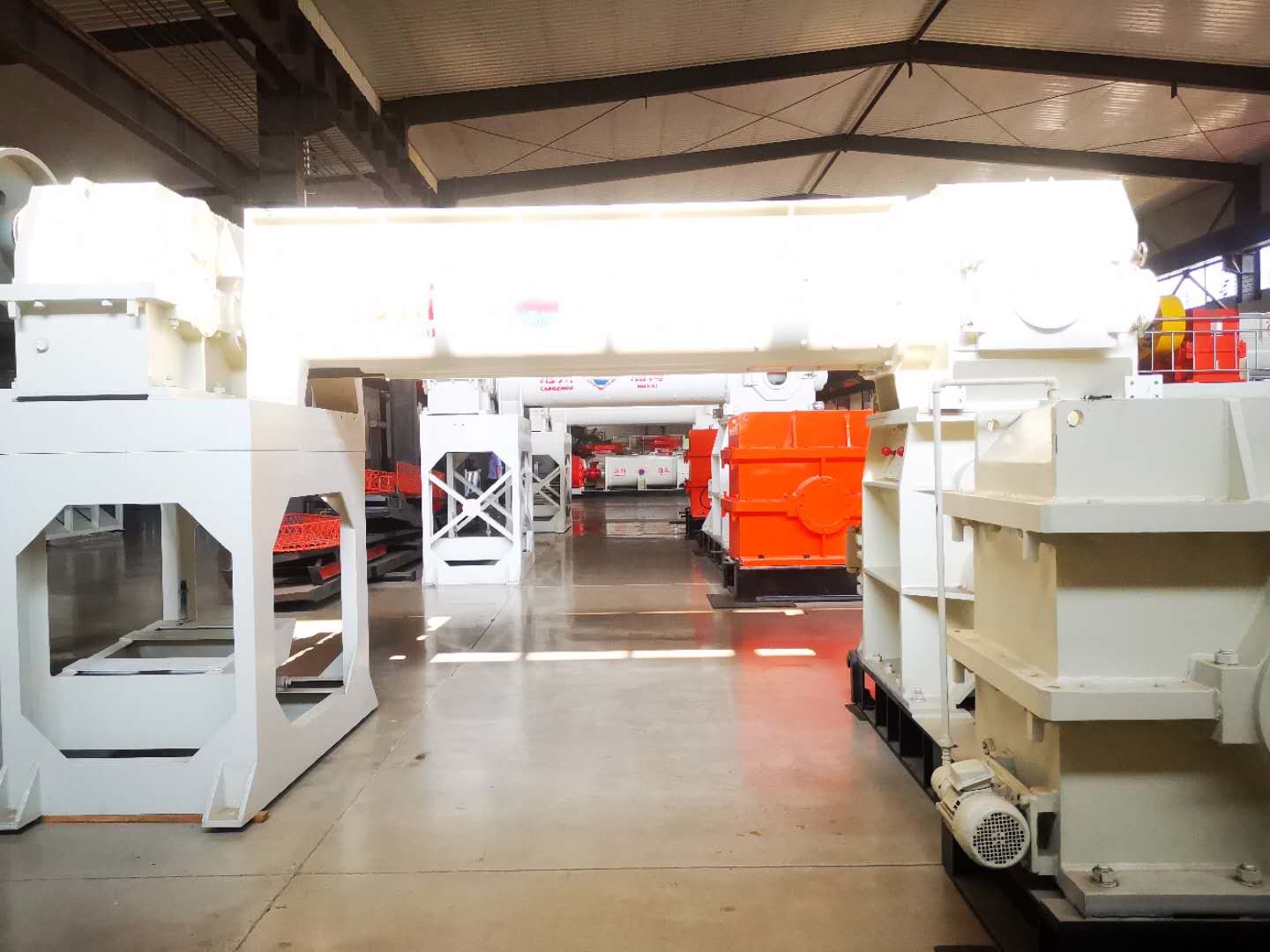

5. . Machine pictures

32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine32000t/H 600mm Automatic Hydraulic Fly Ash Brick Making Machine
